RF
Cooling Tube Serial »

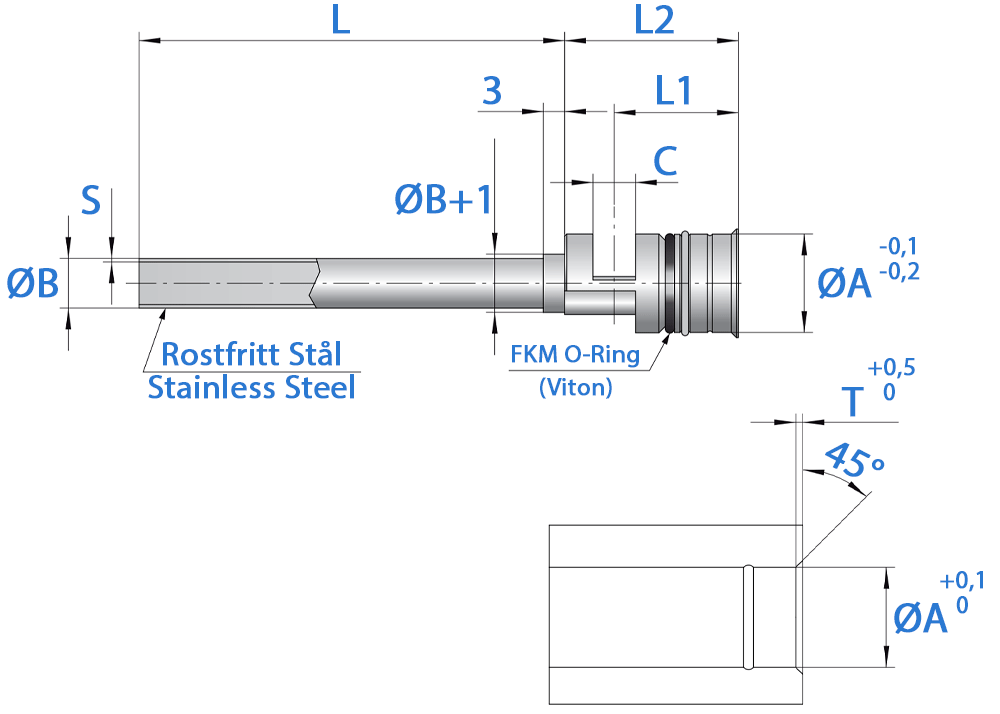

Cooling Tube Ø14,5 Serial Cooling 7X450
ØA = 14,5
ØB = 7
T = 1
S = 0,5
C = 6
L1 = 17
L2 = 24,5
L = 450
Cooling Tube Ø14,5 Serial Cooling 7X450
Download CAD file
Download PDF fileItem code: RF-14,5-7X450
