Leveler with DV - Int. Spring
Leveler with DV - Int. Spring
Stroke = 8,5mm / Length = 42,5mm
Vacuum connection on top, vacuum channel via spring leveler.
With internal spring protected from dirt and with spring deflection limiter
Direct mounting of the spring leveler on the vacuum cup, no additional fitting required

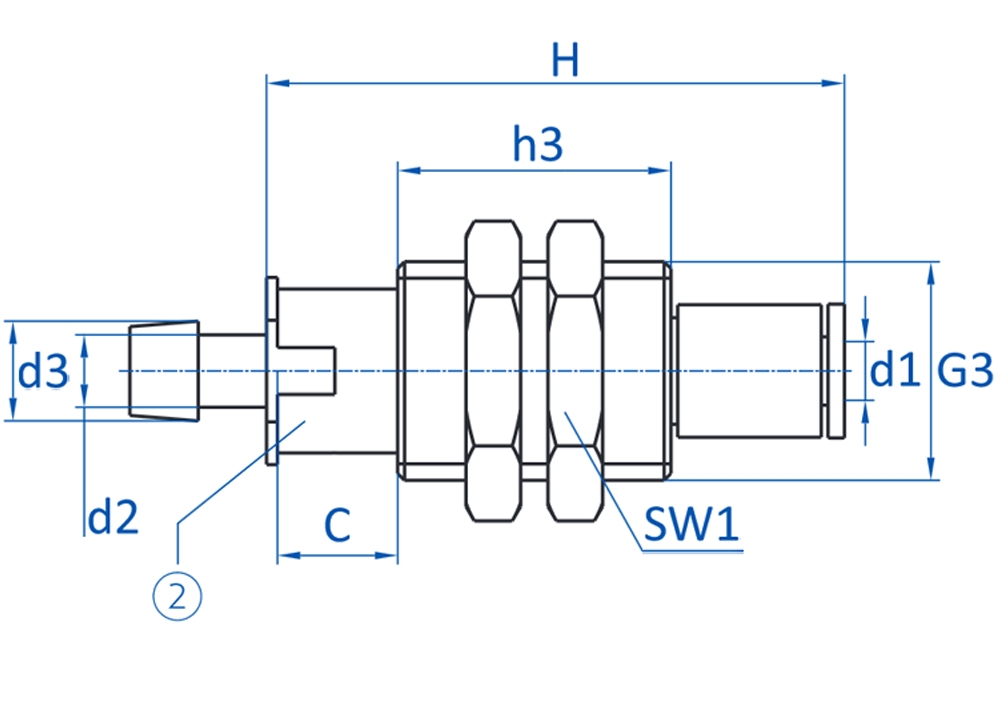

Technical Data 2D:
- Ø d1 [mm] = 6
- Ø d2 [mm] = 5
- Ø d3 [mm] = 7,3
- G3 = M16x1
- H [mm] = 42,5
- h3 [mm] = 20
- SW1 = 19
- C [mm] = 8,5
- 2 = Plastkropp
Technical Info:
- Stroke = 8,5
- Spring Rate [N/mm] = 0,157
- Max. Spring Force [N] = 2,3
- Spring Pre-Load [N] = 0,9
- Thread Suction Side = Without Snap-In
- Thread Fixing Bushes = M16x1 Utv.
- Hose Inside Ø [mm] = 6
- Non-Rotating = No
Download Cadfil - Step
PDF Flere OplysningerArt.nr: 50.020
