Long Angle Clamp Ø20x25

Long Angle Clamp Ø20x25
Long Angle Clamp Ø20x25

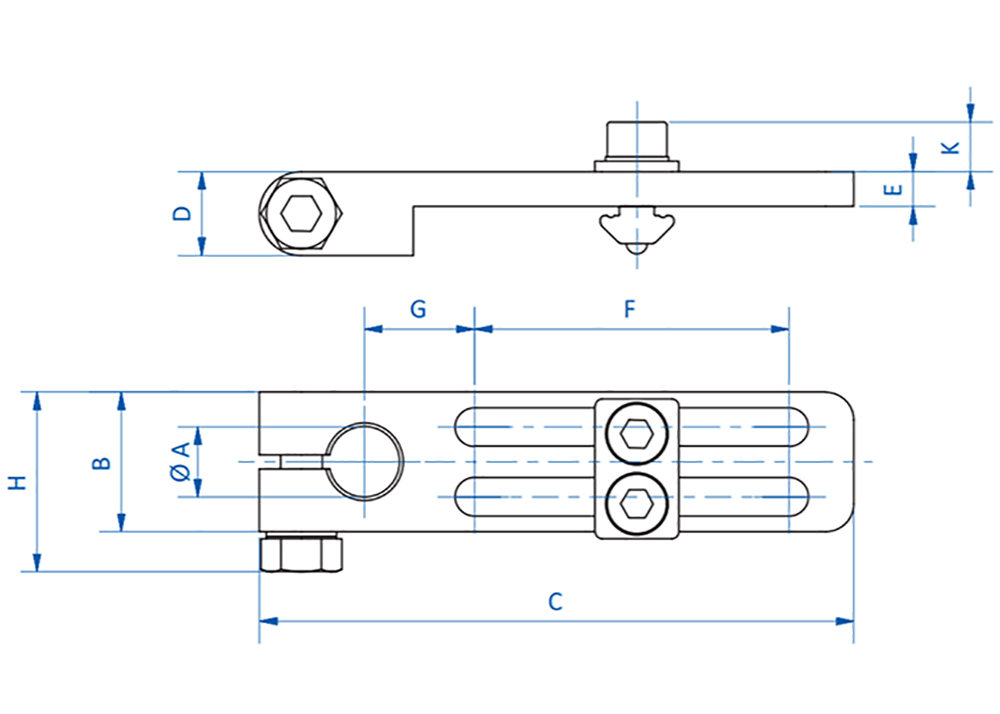

A = Ø20
B = 25
C = 114
D = 12
E = 8,5
F = 64,5
G = 20,3
H = 30,7
K = 7,1

Long Angle Clamp Ø20x25

90° Mounted directly to extrusion

    Suitable for: SLine/MLine

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: GR02.013A

For prices, apply for an account!
