STAMFORMSprue Gripper
Sprue Gripper
Universal
Series 100
Grippers with strong gripping force and wide jaw opening for large gates
Tight closing for flat gates
Housings and gripper jaws consist of an anodized, high-strength aluminum alloy
Single-acting
- Operating Pressure: 2,5 bar
- Jaws: Special gripper jaws; the closing force depends on the shape of the gripper jaws
- Closing force at 6 bar (87 psi): 22.0 N
Ladda ner 3D Stepfil

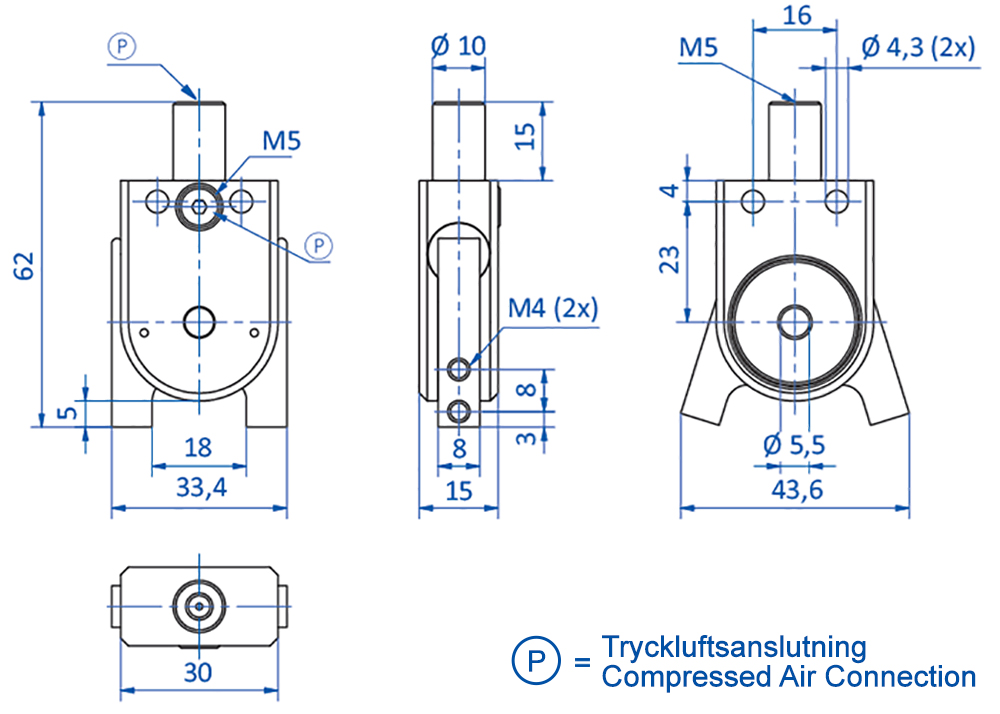

For 2D and information please see PDF
Art.nr: GR04.100U
Relaterade artiklar och tillbehör
Gripper jaws HNBR rubberized
Suitable for Gripper GR04.100U
Jaws Prism + V-shape notch
Suitable for Gripper GR04.100U
