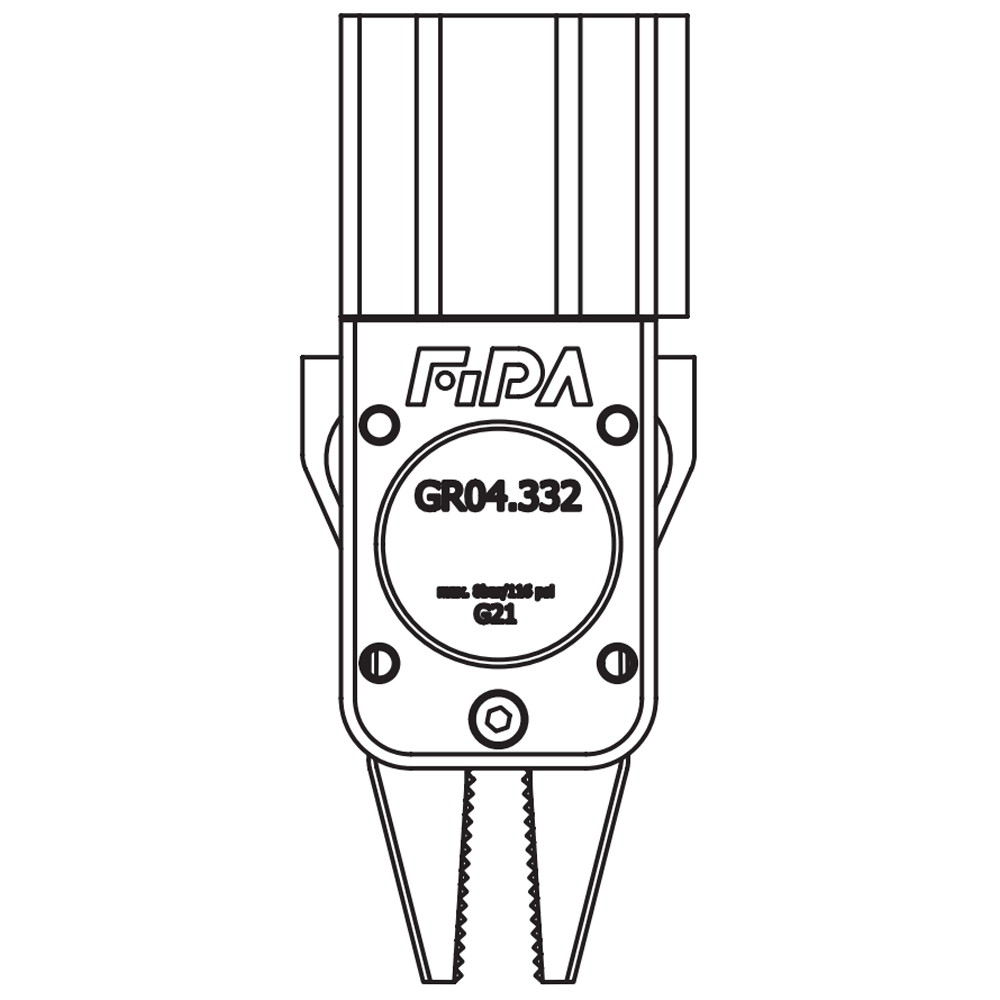

Sprue Gripper Extra Strong
Sprue Gripper Extra Strong
Double stroke 20 and 20mm
Series 332
Strong, double-action power gripper
Ideally suited for demoulding large components in particular
Clamping force measured at the jaw tip
- Operating Pressure: 0.5 bar
- Jaws: Standard
- Closing force at 6 bar (87 psi): 310.0 N
- Stroke 2: 20 mm
- Stroke 1: 20 mm
- Lifting force at 6 bar (87 psi): 480.0 N
Ladda ner 3D Stepfil
For 2D and information please see PDF
Art.nr: GR04.332-20-20
