2 Fingered Parallel Gripper
2 Fingered Parallel Gripper
Double-act - Grip. Move. 14mm
Gripper with high gripping force
Double-acting for inside/outside gripping and short duty cycles
Body made of high-strength aluminum alloy, jaws are steel
- Operating Pressure: 1,5 bar
- Closing force at 6 bar (87 psi): 75.0 N
- Piston diameter: 25mm
- Stroke per gripper jaw: 7mm
- Opening force at 6 bar (87 psi): 118.0 N
Download 3D Step file
For 2D and information please see PDF
Item code: GR04.122-25
Relaterade artiklar och tillbehör
Connecting Cable 3-pin M8-socket 90° angled
2 meters, open wire, PUR
Connecting Cable 3-pin M8-socket Straight
2 meters, open wire, PUR
Extension Cable 1,5m
3-pin M8-socket straight - M8-connector straight
Fitting with clamp diam. Ø20 shaft length 90mm
Suitable for GR04.122-25, GR04.123-25

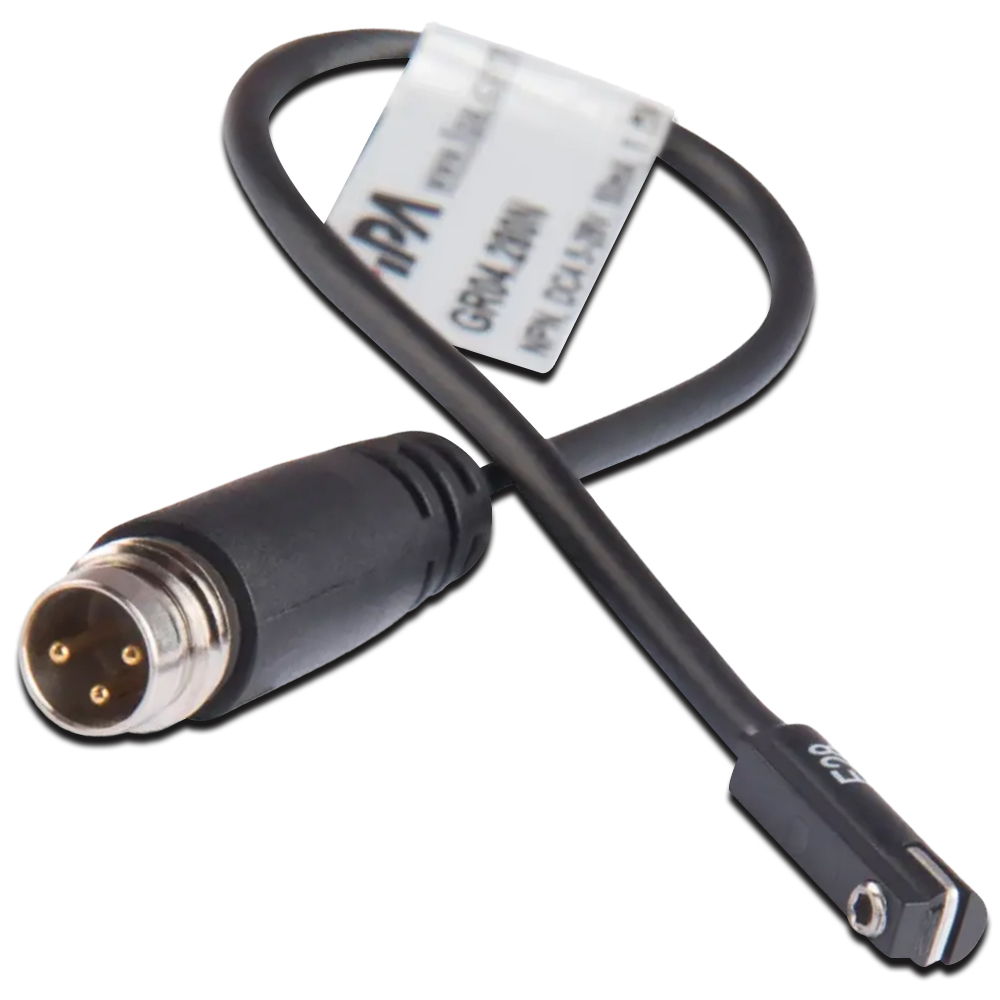

Magnetic Sensor NPN M8-connector 3-pin
NO, C-slot, Straight 0,3 meters
Magnetic Sensor NPN M8-male 3-pin 90° angled
NO, C-slot, 0,1 meters

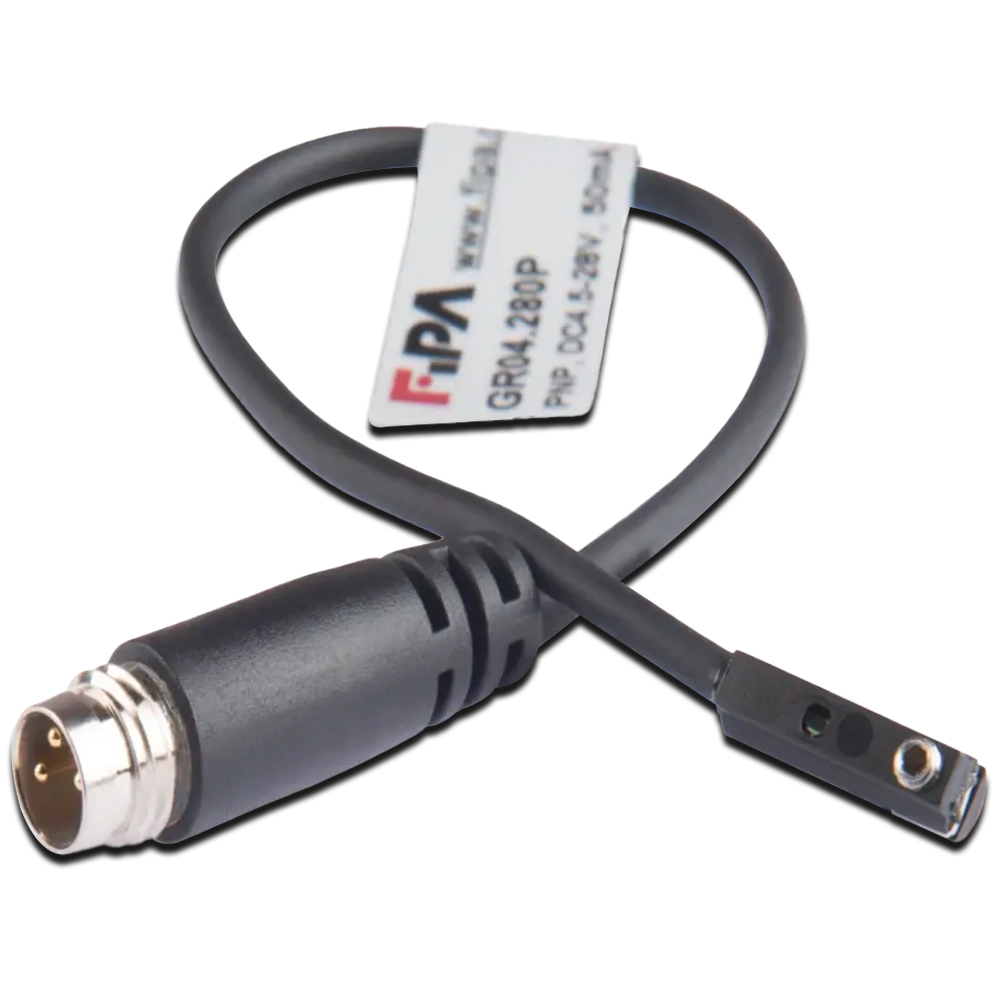

Magnetic Sensor PNP M8-connector 3-pin
NO, C-slot, Straight 0,3 meters
Magnetic Sensor PNP M8-male 3-pin 90° angled
NO, C-slot, 0,1 meters
Magnetic Sensor Short NPN M8-male 3-pin
NO, C-slot, Straight 0,1 meters
Magnetic Sensor Short PNP M8-male 3-pin
NO, C-slot, Straight 0,1 meters
