STAMFORM2 Fingered Angular Gripper
2 Fingered Angular Gripper
Grip Mov +30° to -10° Pist Ø10
Grippers for undercuts, clamping, mounting and pick & place applications
Double-acting for inside/outside gripping and short duty cycles
Body made of high-strength aluminum alloy, jaws are steel
- Operating Pressure: 1.5 bar
- Piston diameter: 10mm
- Angle stroke closed: 30°
- Angle stroke open: -10°
- Max. closing torque at 6 bar: 11.0 Ncm
- Max. opening torque at 6 bar: 15.0 Ncm
Ladda ner 3D Stepfil
For 2D and information please see PDF
Art.nr: GR04.123-10
Relaterade artiklar och tillbehör

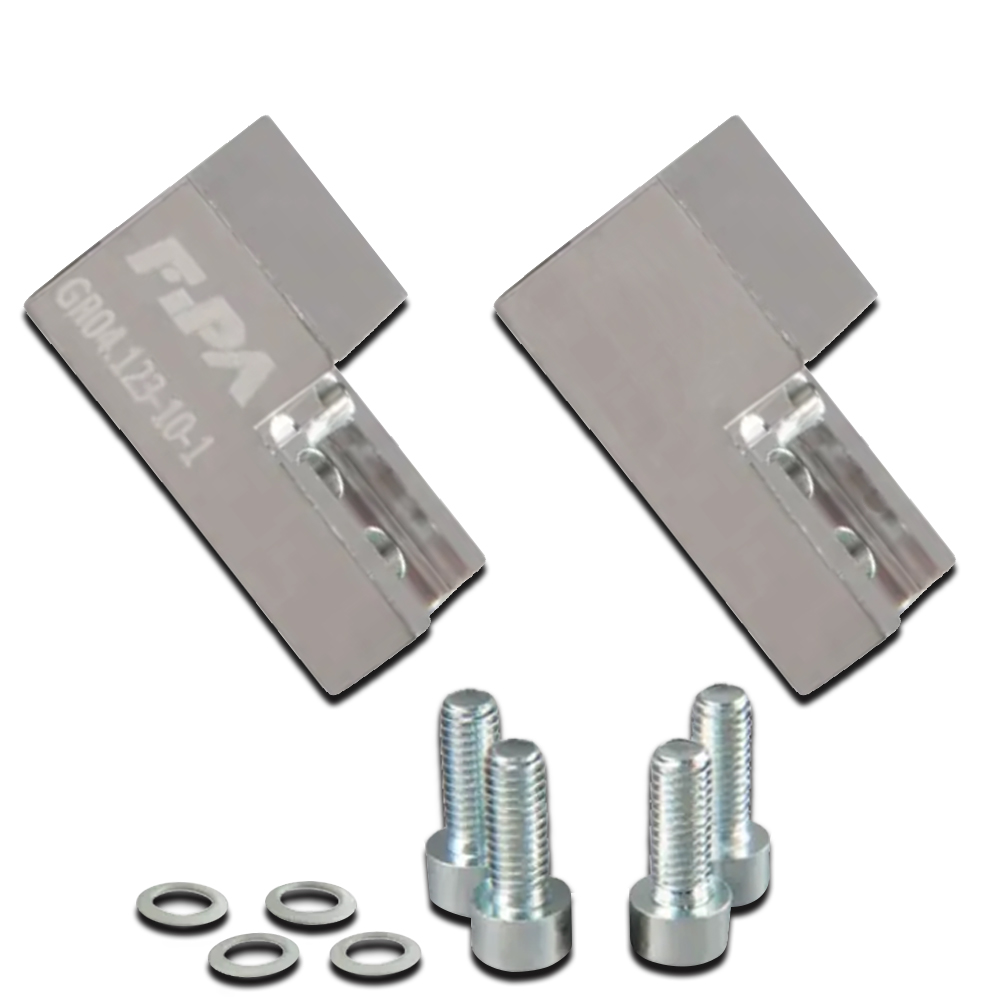

Base Jaws for Angular Gripper
