ID Gripper - Silicone

ID Gripper - Silicone

For Parts W. internal Ø19,5-Ø23,5

Single-acting grippers with high holding force

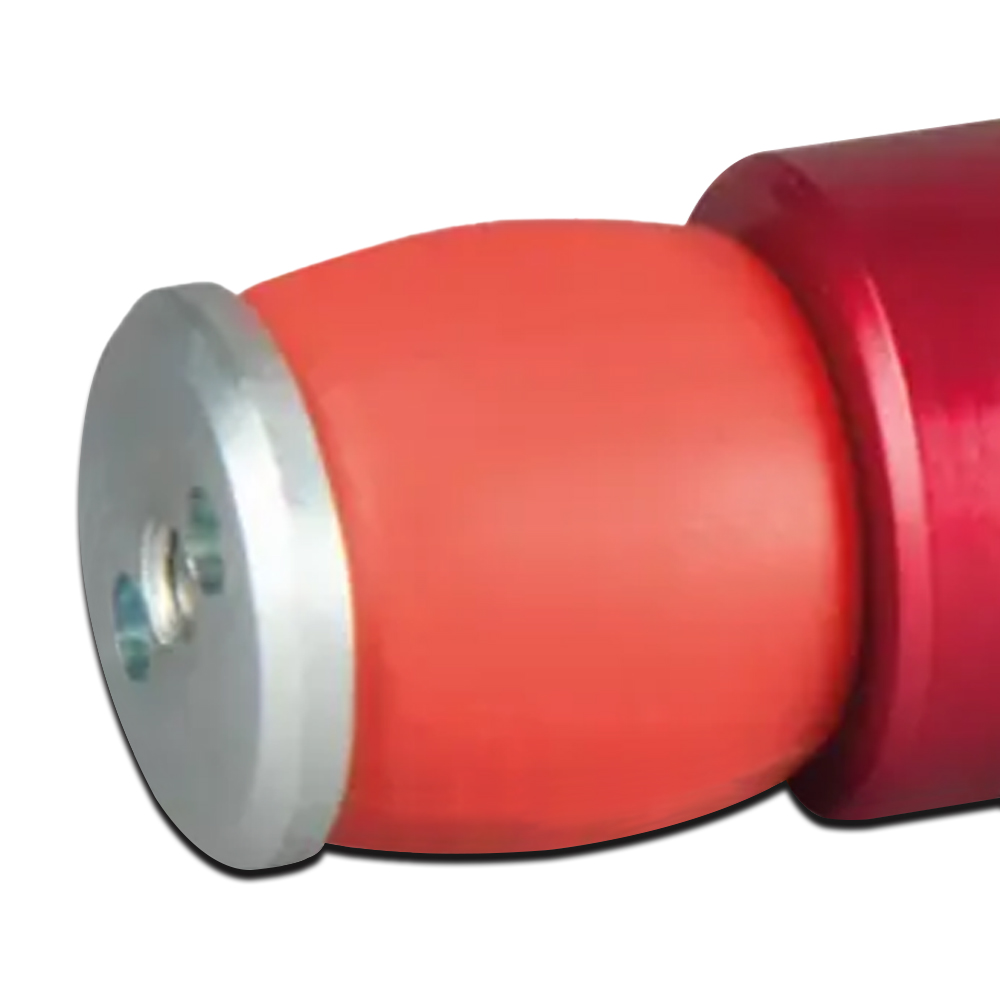

Gripper bellow expanded by pneumatically driven piston, clamps workpiece at its inner surface

Ventilation of gripper resets piston and bellow and releases workpiece

Piston movement adjustable to position of gripped object

Holding force controlled by feed pressure

Robust body, made of anodized, high-strength aluminum alloy

Easy and non-destructive exchange of bellows

Piston movement adjustable to position of gripped object, bellow is not inflated, no risk of bursting

Downward piston movement (workpiece pushed)(See PDF):

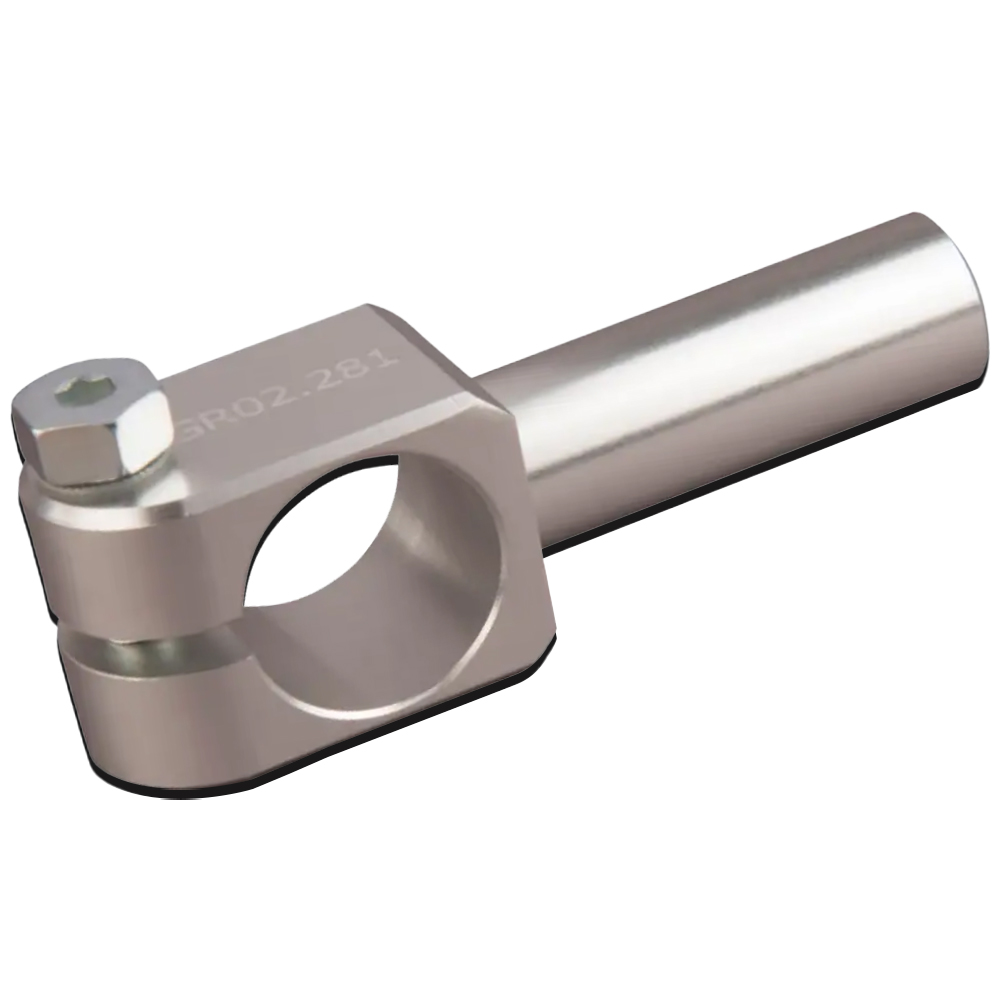

Clamp the black part of gripper body or using optional extension tubes or threaded mounting brackets

Upward piston movement (workpiece drawn)(See PDF):

Clamp the red part of gripper body

Optimal operating pressure: 8 bar (116 psi)
Material Bellow: Silicone

  Download 3D Step file

  For 2D and information please see PDF
