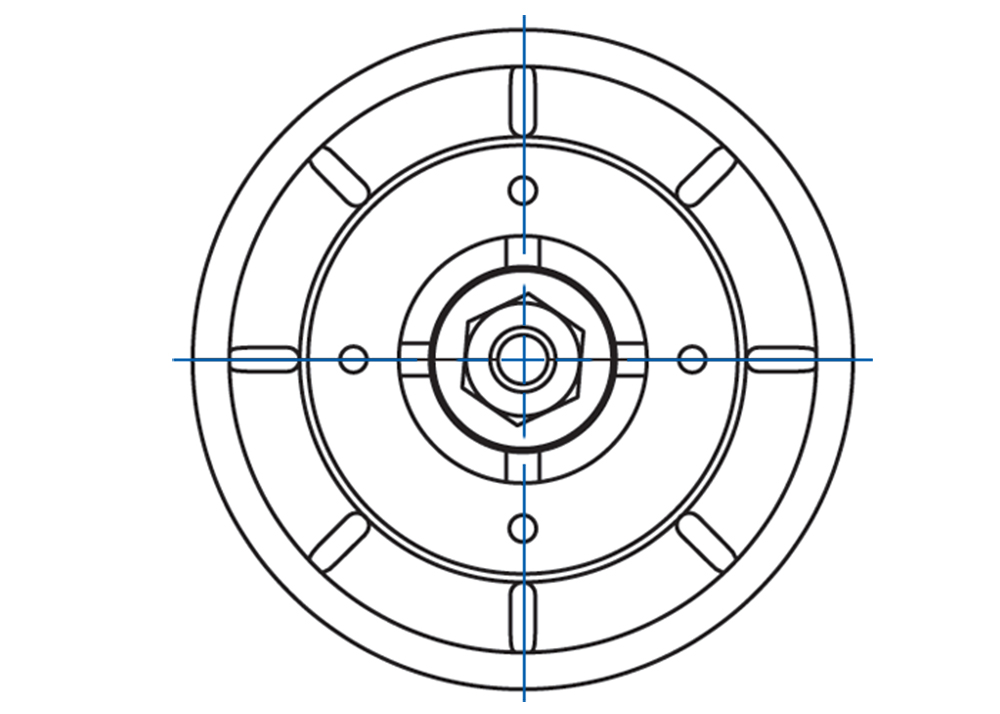

Bellows Cup - 1.5 - Ø80

Bellows Cup - 1.5 - Ø80
Bälgkopp - 1,5 Bälg - Ø80
Bellows Cup - 1.5 - Ø80

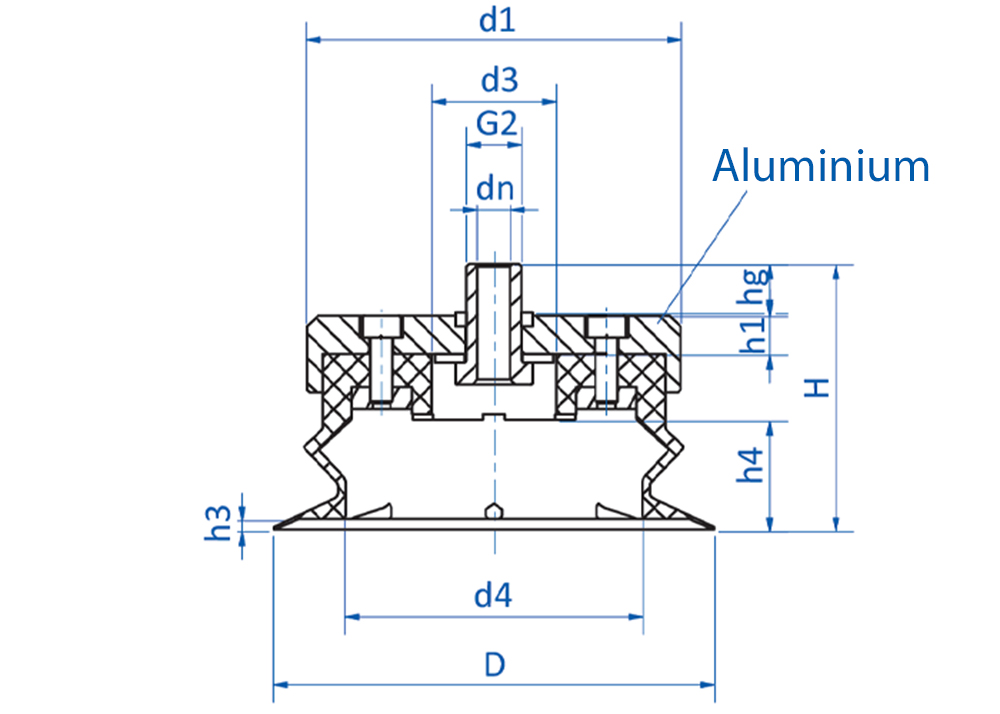

D = Ø80
d1 = Ø68
d3 = Ø23
d4 = Ø54
dn = Ø6
G2 = M10
H = 48
h1 = 7
h3 = 2
h4 = 20
hg = 9

Bellows Cup - 1.5 - Ø80

(NBR) M10-Male fitting

(NBR) = Nitril Rubber

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: 22.080.161.1

For prices, apply for an account!
