Bellows Cup - 1.5 - Ø8

Bellows Cup - 1.5 - Ø8
Bellows Cup - 1.5 - Ø8

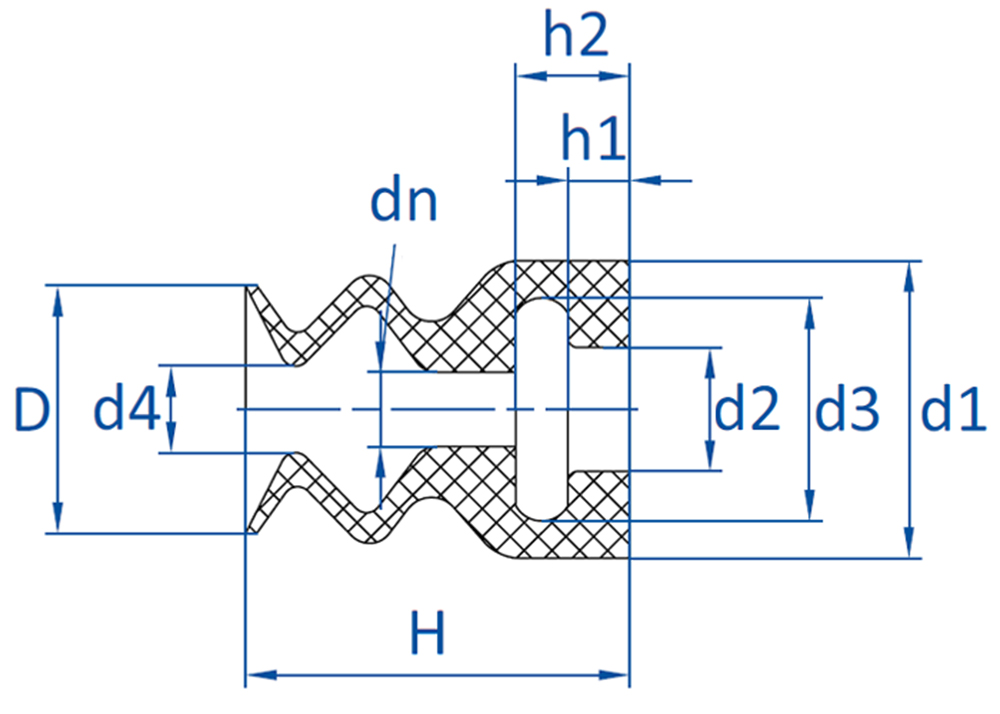

D = Ø8
d1 = Ø12
d2 = Ø5
d3 = Ø9
d4 = Ø4
dn = Ø2
H = 14,7
h1 = 2,5
h2 = 4,5

Bellows Cup - 1.5 - Ø8

(NBR)

(NBR) = Nitril Rubber

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: 23.008.146.1

For prices, apply for an account!
