Produkter »    VACUUM CUPS AND FITTINGS »    Vacuum Cups Bellows »    SBFFlexible Lip »    CR
(Chloropren) »

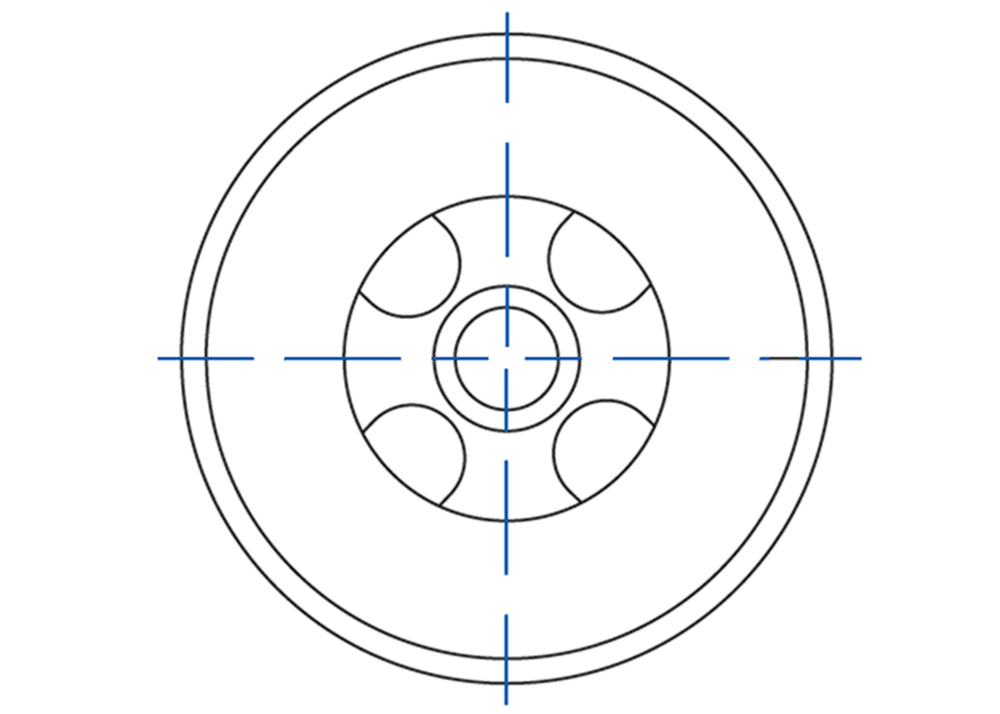

Bellows Cup - 1.5 - Ø20

Bellows Cup - 1.5 - Ø20
Bälgkopp - 1,5 Bälg - Ø20
Bellows Cup - 1.5 - Ø20

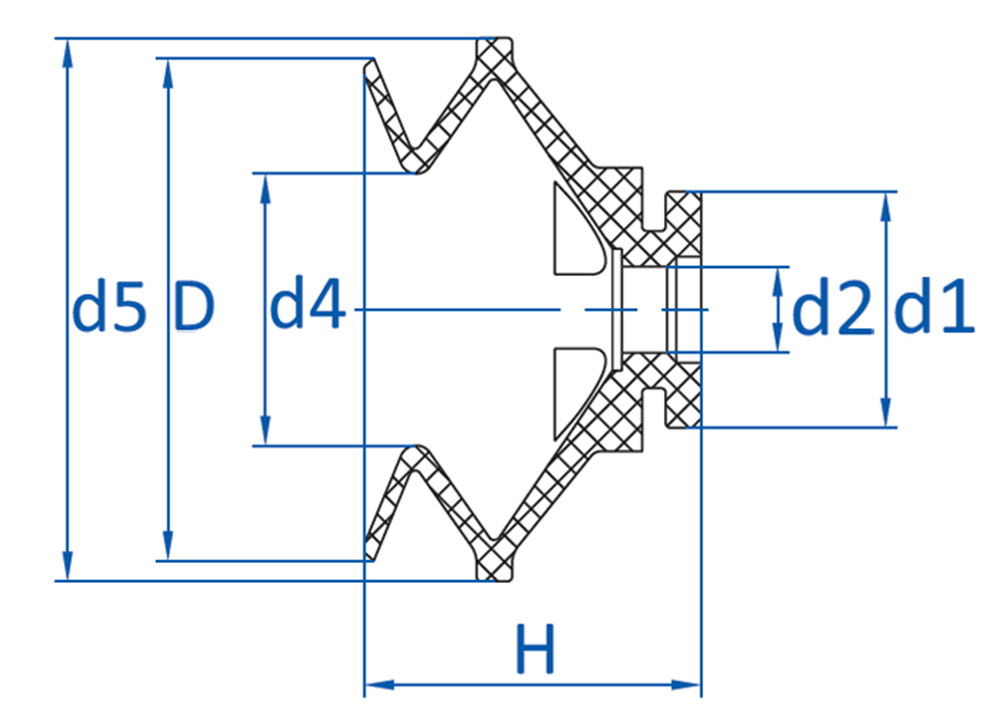

D = Ø21
d1 = Ø14,5
d2 = Ø5,5
d4 = Ø11
d5 = Ø24
H = 19,5

Bellows Cup - 1.5 - Ø20

(CR)

(CR) = Chloropren

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: 23.020.026.9

For prices, apply for an account!

Relaterade artiklar och tillbehör

xxx
78.200
Filter disc Ø17,5

HDPE - Thickness = 1,5mm

For prices, apply for an account!
xxx
270.250
Fitting G1/8 Male

For prices, apply for an account!
xxx
270.503-S
Fitting G1/8 Male

For prices, apply for an account!
xxx
270.500-S
Fitting M5 Female

For prices, apply for an account!
xxx
78.011
Fitting ring TPU

Out Ø14, Inner Ø9,7

For prices, apply for an account!
