Produkter »    VACUUM CUPS AND FITTINGS »    Vacuum Cups Bellows »    SP-BXVarioflex®Universal »    1,5 Bellows »

Vacuum Cup Varioflex® Ø16 with fitting M6-Male

Vacuum Cup Varioflex® Ø16 with fitting M6-Male
Vacuum Cup Varioflex® Ø16 with fitting M6-Male

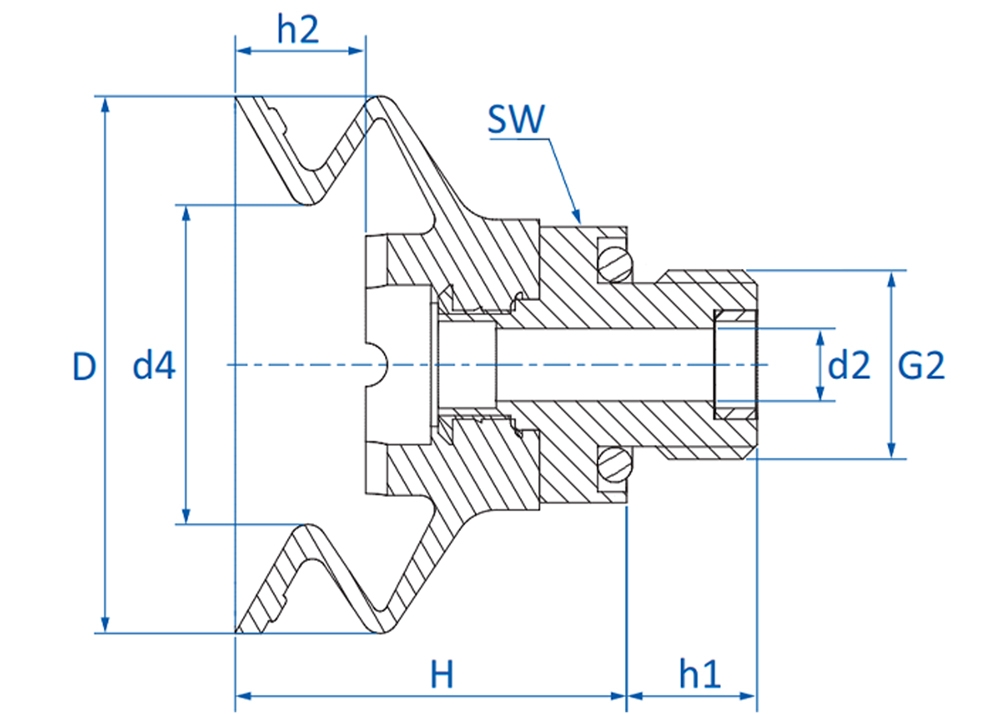

D = Ø16
d2 = Ø2,5
d4 = Ø6,5
G2 = M6
H = 24
h1 = 6
SW = 13

Vacuum Cup Varioflex® Ø16 with fitting M6-Male

1,5 Bellows 30°/60°

Vacuum cups with multipurpose use.
Varioflex vacuum cups are made of an extremely
wear-resistant polymer.
Soft, flexible sealing lip in 30° Shore A (red).
Stable body in 60° Shore A (black).

CAD  Download 3D Step file

PDF  For 2D and information please see PDF

Item code: 22.016.254.16

For prices, apply for an account!

Relaterade artiklar och tillbehör

xxx
270.104
Fitting M6 Male

For prices, apply for an account!
xxx
23.016.263.16
Vacuum Cup Varioflex® Ø16

1,5 Bellows 30°/60°

For prices, apply for an account!
