Vacuum Cup Polyurethane Ø16 with fitting M6-Male

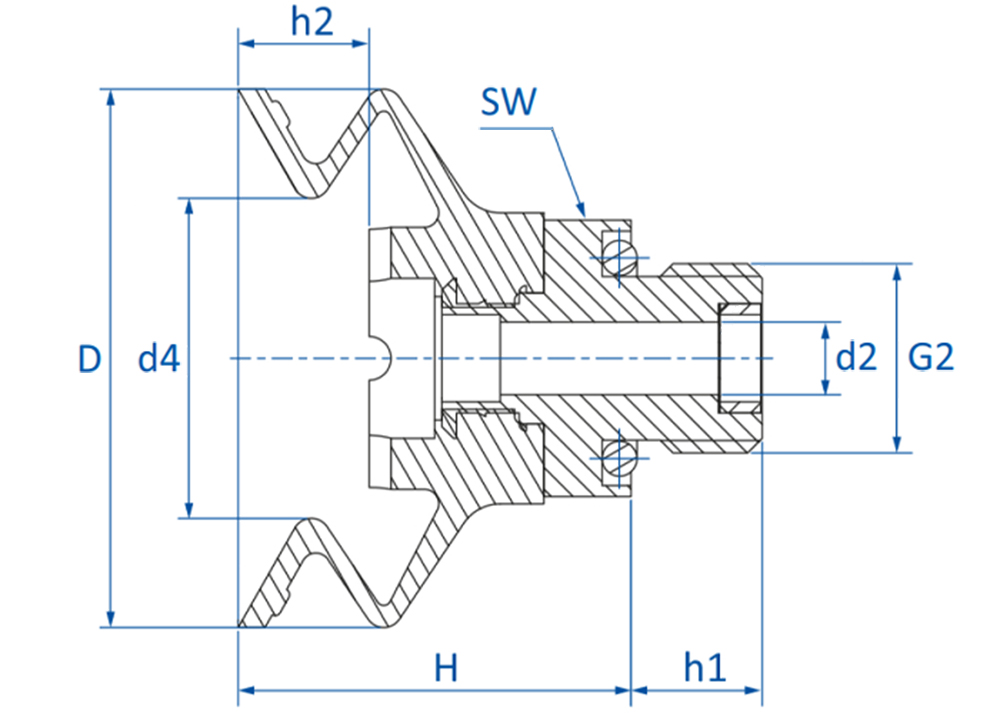

D = Ø16
d2 = Ø2,5
d3 = Ø14
d4 = Ø6,5
G2 = M6
H = 24
h1 = 6
SW = 13
Vacuum Cup Polyurethane Ø16 with fitting M6-Male
1,5 Bellows 50°
Vacuum cups with multipurpose use.
These bellows vacuum cups are made of an very wear-resistant polyurethane.
Hardness 50° Shore A.
Support ribs stabilize the product.
Download 3D Step file
For 2D and information please see PDF
Art.nr: 22.016.254.22
