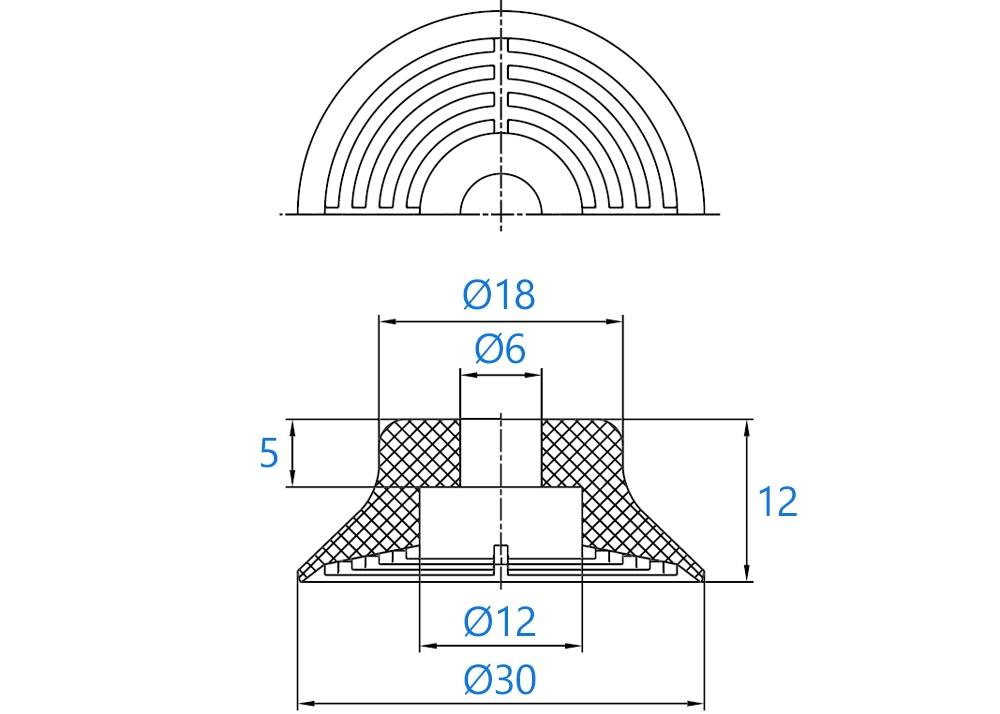

Vacuum Cup Flat Ø30 for metal sheets
Vacuum Cup Flat Ø30 for metal sheets
NBR - Stroke: 1,8mm
Flat vacuum cups of oil-resistant NBR
for handling metal sheets.
Distinct radially extending cleats increase
the holding force and prevent “deep drawing”
of the product as well as any slipping
of oily sheets.
Material: (NBR) Nitril rubber
Download 3D Step fileArt.nr: 104.030.067.1
