Vacuum Cup 4,5 - Ø20

Vacuum Cup 4,5 - Ø20
Vacuum Cup 4,5 - Ø20

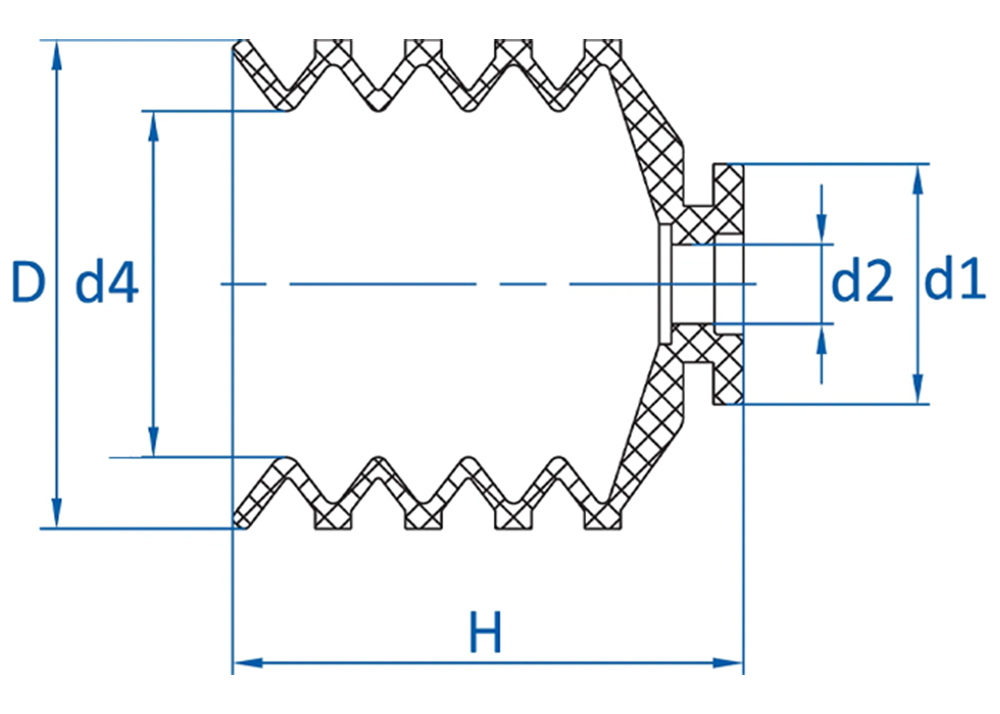

D = Ø20
d1 = Ø14,5
d2 = Ø5
d4 = Ø14
H = 23

Vacuum Cup 4,5 - Ø20

SI - Stroke: 16mm

Silicone

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: 25.020.025.2

For prices, apply for an account!

Relaterade artiklar och tillbehör

xxx
270.250
Fitting G1/8 Male

For prices, apply for an account!
xxx
270.503-S
Fitting G1/8 Male

For prices, apply for an account!
xxx
270.500-S
Fitting M5 Female

For prices, apply for an account!
xxx
78.011
Fitting ring TPU

Out Ø14, Inner Ø9,7

For prices, apply for an account!
xxx
78.000
Reinforcement ring

For bellows suction cup 25.020.025

For prices, apply for an account!
