Produkter »    AIR NIPPERSSHEARS »    Air NippersManual/Automatic »    Cutting Inserts »    For Metal »    Angled Blades »

Angled Blade

Angled Blade

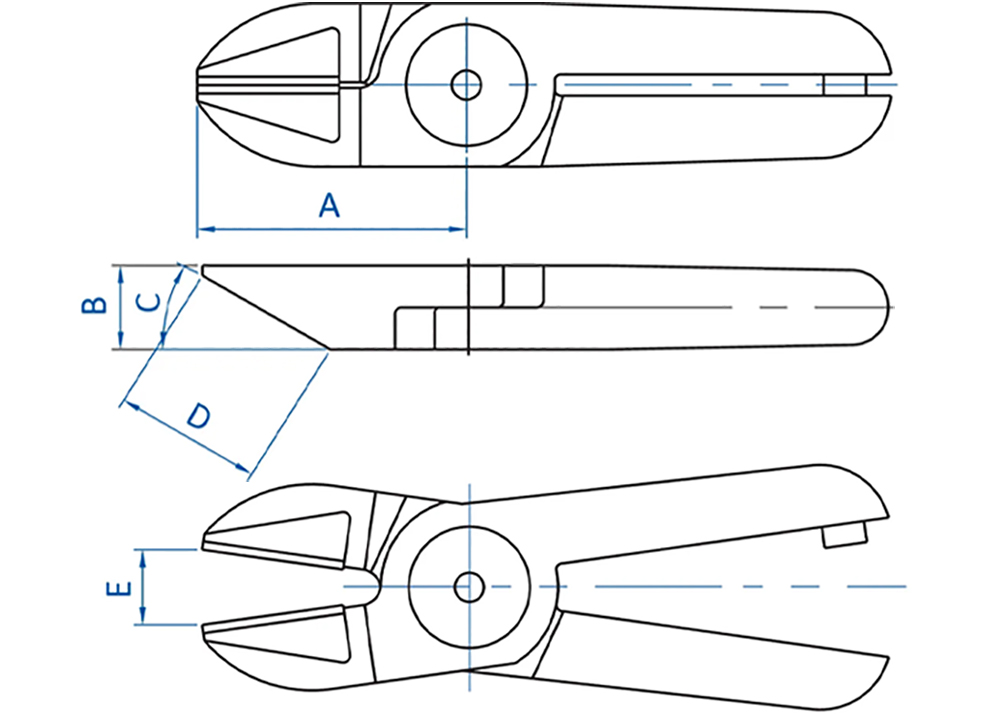

Angled Blade
A = 24
B = 7
C = 25°
D = 12
E = 4

Angled Blade

For GT-N3/NR3/NS3

For Metal

Max. cutting thickness [mm]
Copper wire: 1
Steel wire: 0,5

Material:
Ferrous alloy

CAD  Download 3D Step file Open Blade

CAD  Download 3D Step file Closed Blade

PDF  For more information please see PDF

Item code: N3AS

For prices, apply for an account!

Relaterade artiklar och tillbehör

xxx
GT-N3
Manual Air Nipper Ø23x112

Round (without cutting insert)

For prices, apply for an account!
xxx
GT-NS3
Rect. Air Nipper Ø23x110

(without cutting insert)

For prices, apply for an account!
xxx
GT-NR3
Round Air Nipper Ø23x110

(without cutting insert)

For prices, apply for an account!
