Elbow Arm With Spring Ø10

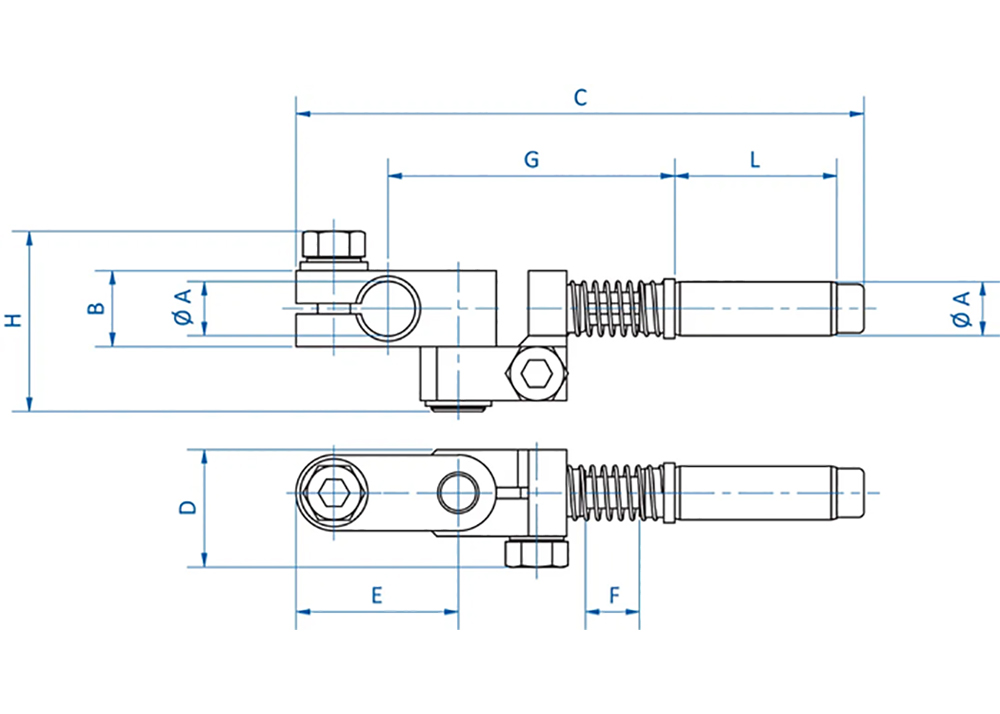

A = Ø10
B = 14
C = 115
D = 31,7
E = 30
F = 20
G = 63
H = 33,3
L = 30
Elbow Arm With Spring Ø10
Stroke 20mm - Angle ±130°
Angle adjustment +/- 130°
Spring Compensated and Non-rotating
Smooth motion due to lubrication-free polymer bearing
Ladda ner 3D Stepfil
For more information please see PDF
Art.nr: GR03.161
