STAMFORMSprue Gripper
Sprue Gripper
Single-acting
Series 110
- Series 110
Gap-free closing for reliably gripping small or flat sprues.
Large jaw opening also allow for larger sprue diameter to be handeled.
- Single-acting
- Max. operating pressure: 8 bar (116psi)
- Jaws: Standard
- Closing force at 6 bar (87 psi): 95.0 N
- El. connection: 3-pin male M8 connector
- Sensor: Without

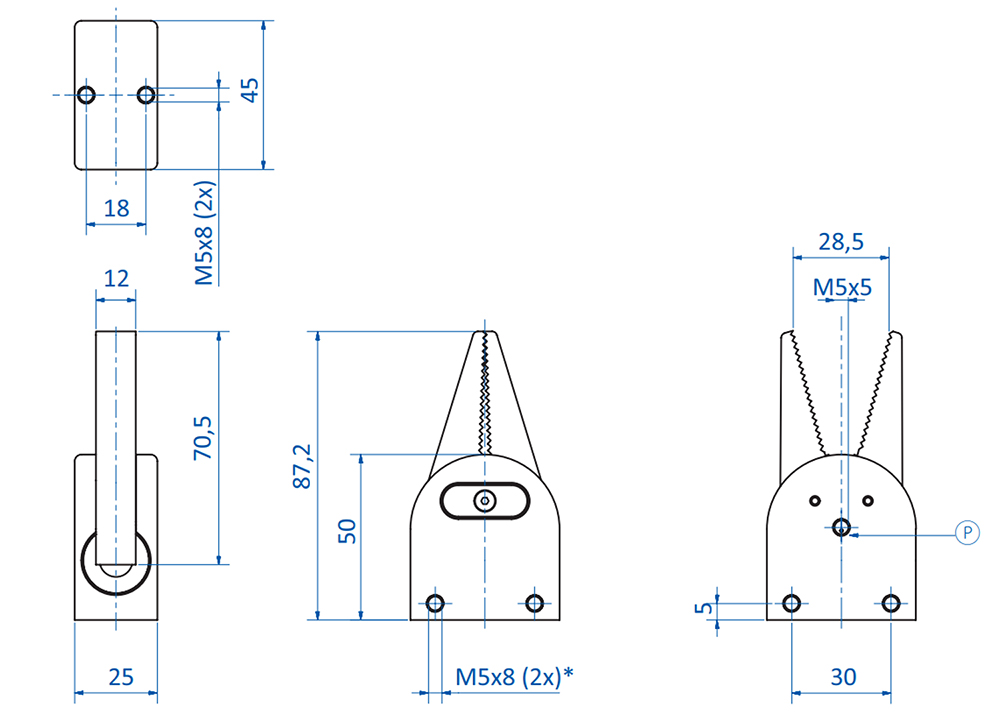

P = Compressed air connection
* = Fixing hole
Ladda ner 3D Stepfil
For 2D and information please see PDF
Art.nr: GR04.110B
