Produkter » KOMPONENTER » Centreringsenheder / Centreringsflanger / Avstandsrølle » Interlocks DME » Series LT
Roller Lock »

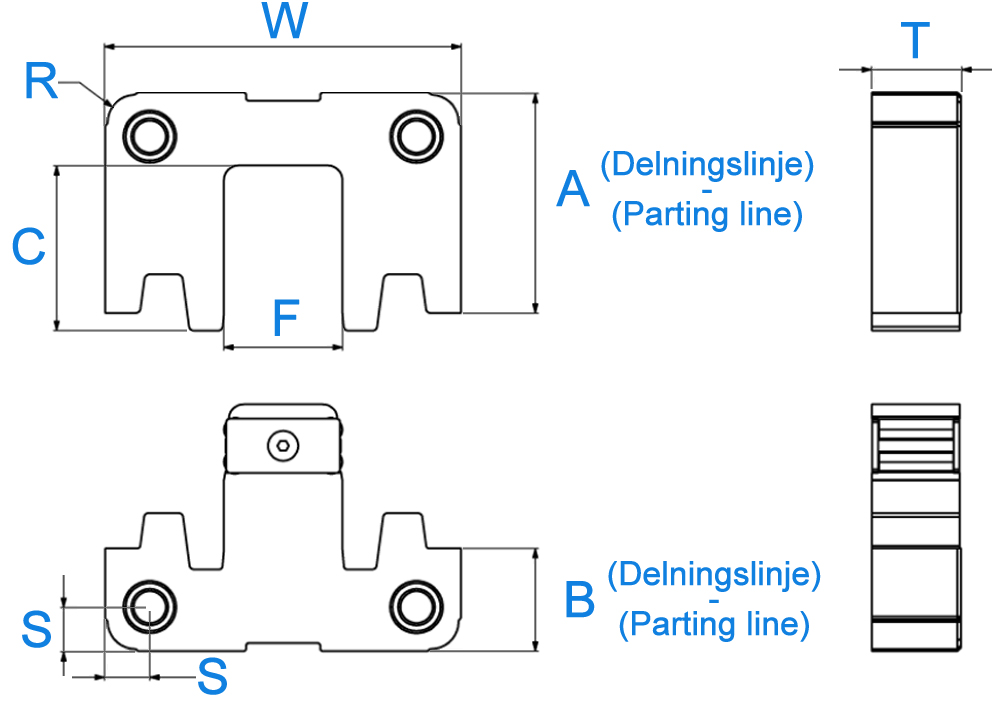

Roller Lock 1+2 (HT)

W = 3,000

A = 1,875

B = 0,875

C = 1.375

F = 1.000

T = 0.750

R = 0.240

S = 0.375

SHCS = 1/4-20

Roller Lock 1+2 (HT)

SET 1 Male + 2 Females

Ideal for shuttler and rotational molds, Male and Female compatible from one set to another.

Longer lead for early engagement and protect for cross over shut off.

Carbide rollers reduce friction and ease early engagement when the mold halves come together.

Triple lock design provides more bearing surface when the locks are fully engaged.

Material:

HT (DC53 Steel): 2x the strength of D2, builds on the Standard LifeLock but offers the industry´s first lock designed specifically to withstand the demands of high temperatures 398°C (750°F) processing applications.

(Please observe!
Measurements in 2D is presented in Inch)

For more information please see PDF

Art.nr: LTRL-300HT-SH

For priser, ansøge om en konto her!
