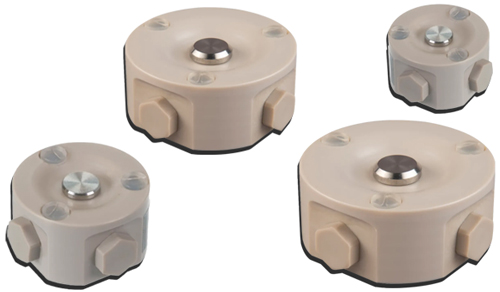

Lifting Cups

Series SX-B-PK

Integrated vacuum generation using the Bernoulli principle.

No ejector, requires compressed air only.

Non-contact, deformation-resistant transport of thin and sensitive products.

Compliant to FDA 21 CFR 177.2600 / FDA 21 CFR 177.2415.

Suitable for porous products thanks to high volume flow at low vacuum level.

Easy to install, system flexibly expandable through lateral compressed air inlets.

Long life cycle due to maintenance-free operation.

Only operated with oil-free, dry compressed air.

Housing in (PEEK) Polyetheretherketone.

SX-B-PK Click for PDF!

Highly resistant against diverse chemicals used in the food industry.
Suitable for all conventional CIP (cleaning-in-place) and SIP (sterilization-in-place) processes.
Hygienic product design enables quick and easy cleaning.

Material:

• Housing: polyetheretherketone (PEEK)
• Pad: Silicone
• Nozzle: Stainless steel
• Seals: Fluorocaoutchouc
• Blanking screw: polyetheretherketone (PEEK)
