Bellows Cup - 2.5 - Ø14

Bellows Cup - 2.5 - Ø14
Bellows Cup - 2.5 - Ø14

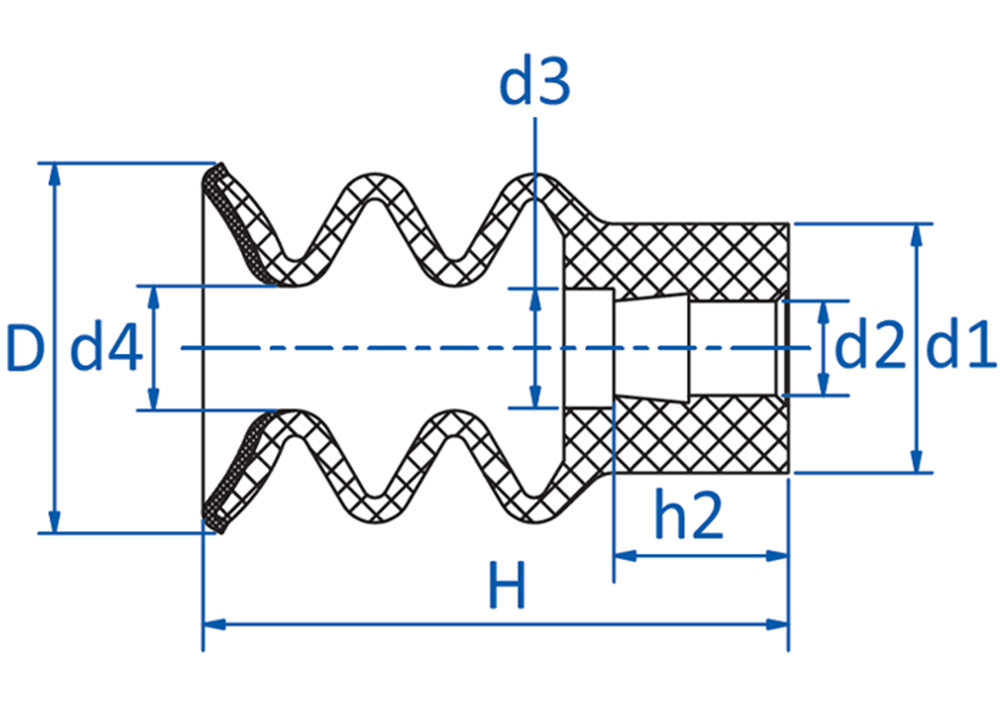

D = Ø14,9
d1 = Ø10
d2 = Ø3,8
d3 = Ø4,8
d4 = Ø5
H = 23,5
h2 = 7

Bellows Cup - 2.5 - Ø14

Thermalon® - Flocked

Bellows vacuum cup made of proven Thermalon® with additional
patented flock coating of the contact surfaces for the
highest demands of non-marking gripping.
hot plastic parts to be painted from an injection molding machine.

Thermalon® is a material mixture specially optimized for the plastics industry
with a hardness of 60° Shore A.

Flock coating made of thin polyamide layer PA6.6 black.
Connection via plug-in nipple.

Up to 160 °C (320 °F) & Minimum marking
Extremely low-marking
Free of silicone and other paint-wetting-impairment substances (PWIS)
Long vacuum cup stroke and good adaptation to curved or uneven product surfaces

(Note: The flock coating could cause leakage,
which must be taken into account in the layout of the vacuum source.)

CAD  Download 3D Step file

PDF  For 2D and information please see PDF

Item code: 21.014.150.19F
