Produkter »    VACUUM CUPS AND FITTINGS »    SpecialVacuum/Lifting Cups »    SX-B - SX-B-PKLifting CupsBernoulli »    SX-B-PK »    Units SX-B-PK »

Ø20 Lifting Cup

Ø20 Lifting Cup
Ø20 Lyftenhet
Ø20 Lyftenhet
Ø20 Lyftenhet
Ø20 Lifting Cup

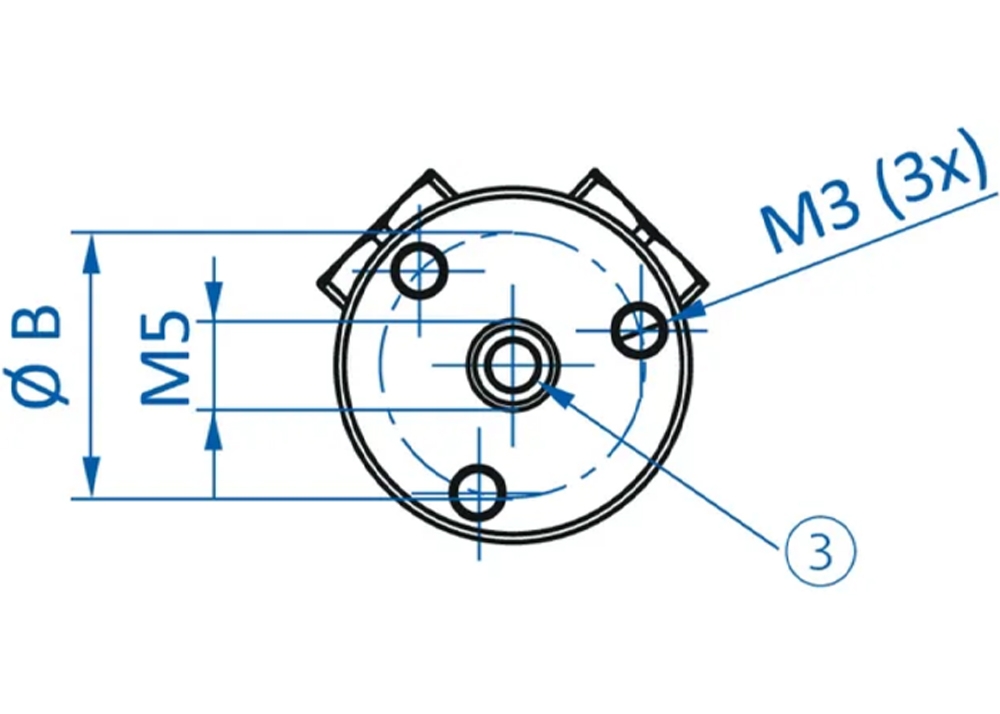

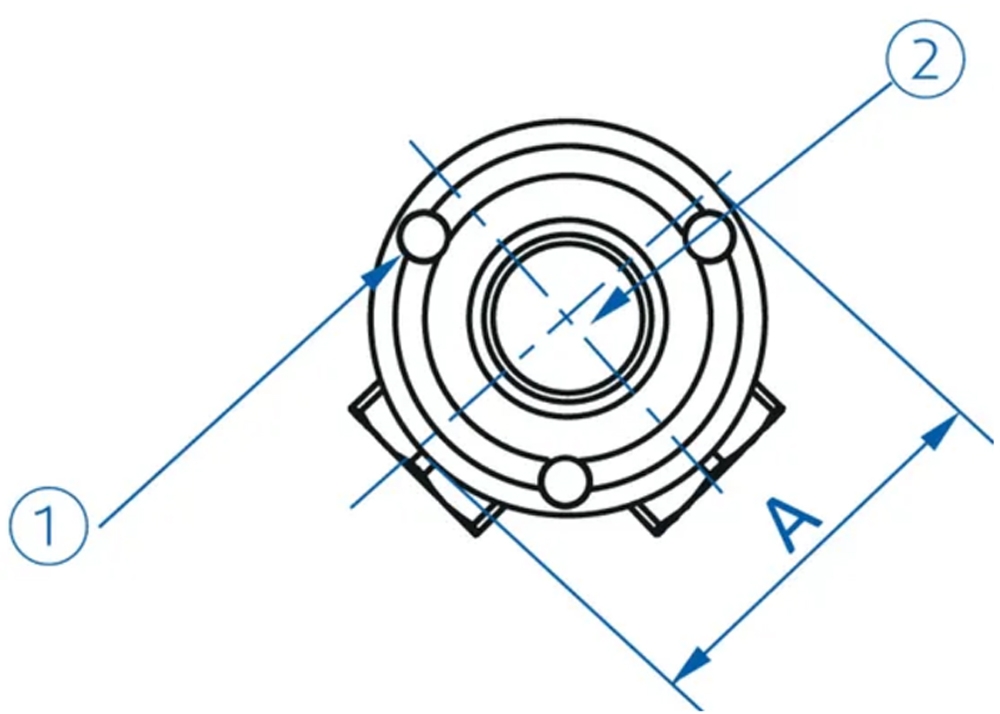

A = 21
B = Ø15

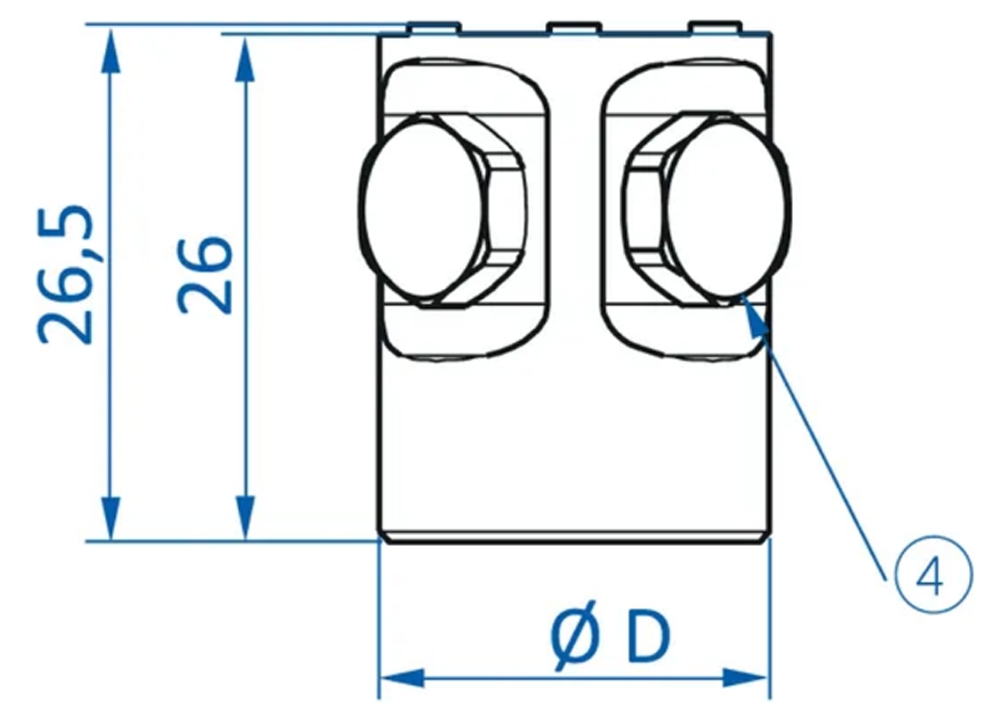

D = Ø20

Ø20 Lifting Cup

Holding force at 5 bar (72,5 psi) [N] = 2.5

1. = Pads
2. = Nozzle 3. = Compressed air connection 4. = Alt. Compressed air connection

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: 65.510-PK

For prices, apply for an account!

Relaterade artiklar och tillbehör

xxx
78.523
Spare Pads - Silicone

Suitable for 65.510-PK

For prices, apply for an account!
